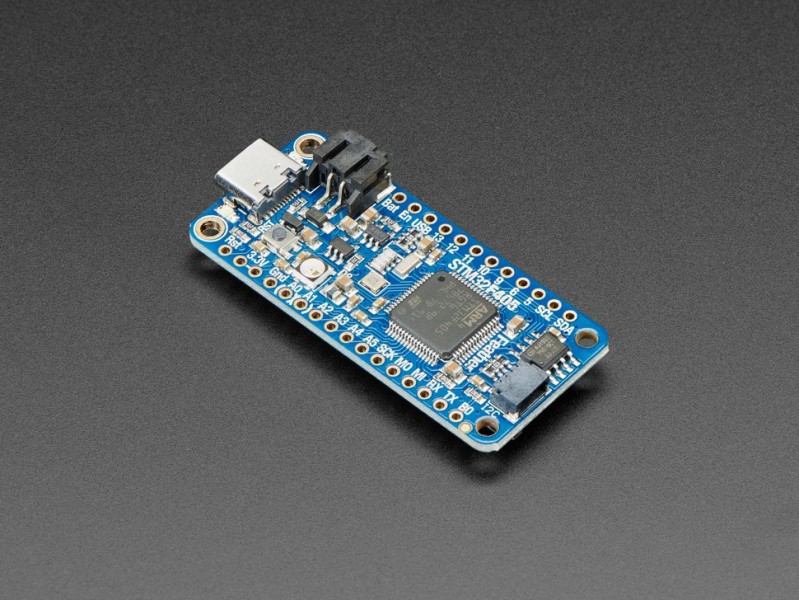

Adafruit ADA-4382
Adafruit Feather STM32F405 Express
STM32F405フェザーは、CircuitPythonを168MHzで実行します。
STEMMA QT / Qwiicポートを実装しているため、I2Cセンサーを簡単に接続して利用できます。
■ 特徴
STM32F405 Cortex M4 with FPU and 1MB Flash, 168MHz speed
192KB RAM total - 128 KB RAM for general usage + 64 KB program-only/cache RAM
3.3V logic, but almost all pins are 5V compliant!
USB C power and data - our first USB C Feather!
LiPo connector and charger
SD socket on the bottom, connected to SDIO port
2 MB SPI Flash chip
Built in NeoPixel indicator
I2C, UART, GPIO, ADCs, DACs
Qwiic/STEMMA-QT connector for fast I2C connectivity
We use the built-in USB DFU bootloader to load firmware. It does not come with a UF2 bootloader.
STEMMA QT / Qwiicポートを実装しているため、I2Cセンサーを簡単に接続して利用できます。
■ 特徴
STM32F405 Cortex M4 with FPU and 1MB Flash, 168MHz speed
192KB RAM total - 128 KB RAM for general usage + 64 KB program-only/cache RAM
3.3V logic, but almost all pins are 5V compliant!
USB C power and data - our first USB C Feather!
LiPo connector and charger
SD socket on the bottom, connected to SDIO port
2 MB SPI Flash chip
Built in NeoPixel indicator
I2C, UART, GPIO, ADCs, DACs
Qwiic/STEMMA-QT connector for fast I2C connectivity
We use the built-in USB DFU bootloader to load firmware. It does not come with a UF2 bootloader.
