商品詳細

WaveShare　RP2040-LCD-1.28

【22668】RP2040搭載 1.28インチ円形ディスプレイ 加速度・ジャイロセンサー内蔵

RP2040を使用したMCUボードです。

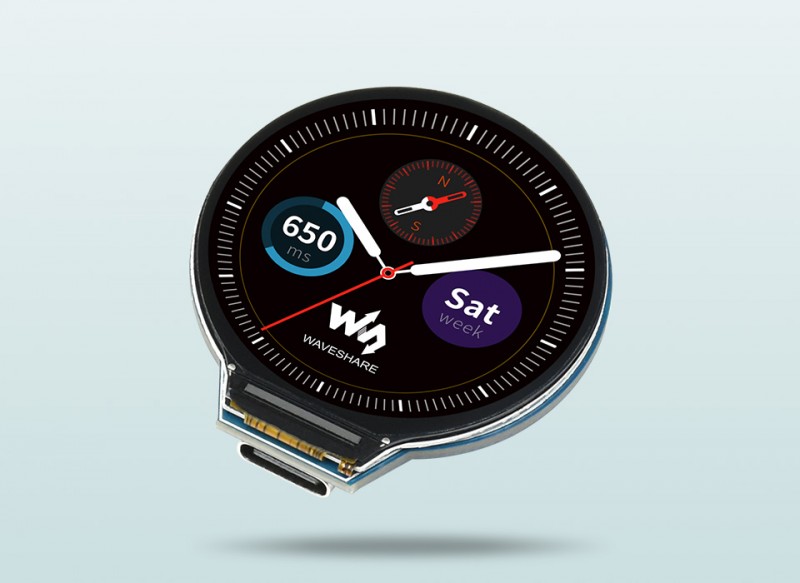

1.28インチの円形ディスプレイにLi-ion電池の充放電回路、6軸センサー(3軸加速度+3軸ジャイロ)を搭載しています。

背面にGPIO端子とデバッグ端子を搭載。

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
Lithium battery recharge/discharge header, suitable for mobile devices
All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
