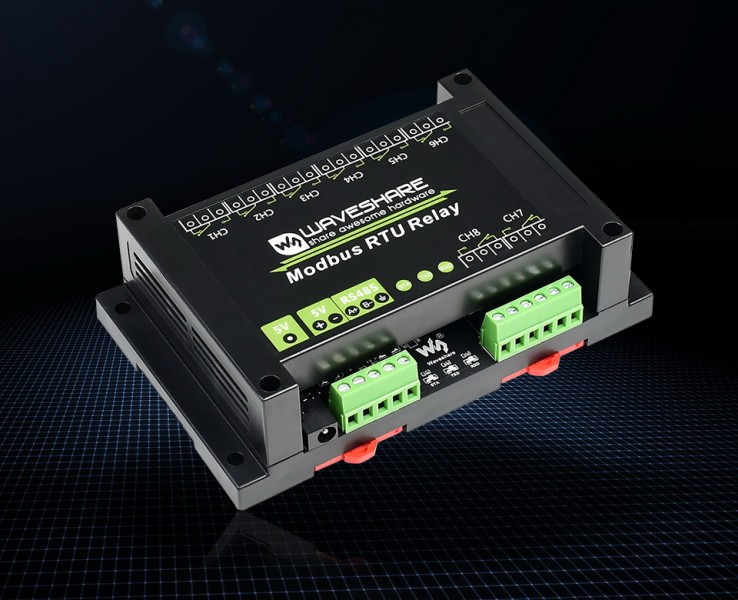

WaveShare Modbus RTU Relay (EN)
【17658】産業用Modbus【モドバス】RTU 8チャンネルリレーモジュール【RS485バス・各種保護入り】
RS485を使用して8チャンネルのリレーが制御可能なモジュールです。モドバスRTUプロトコルを使用します。
Power supply voltage: 5V
Communication interface: RS485
Baudrate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format: 9600, N, 8, 1
Relay channels: 8
Contact form: 1NO 1NC
Communication protocol: Standard Modbus RTU protocol
RS485 address: 1~255
RS485 terminal protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads)
LED indicators:
STA: MCU indicator, keep flashing when the MCU normally working
TXD: TX indicator, light up when sending data
RXD: RX indicator, light up when receiving data
Power supply voltage: 5V
Communication interface: RS485
Baudrate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format: 9600, N, 8, 1
Relay channels: 8
Contact form: 1NO 1NC
Communication protocol: Standard Modbus RTU protocol
RS485 address: 1~255
RS485 terminal protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads)
LED indicators:
STA: MCU indicator, keep flashing when the MCU normally working
TXD: TX indicator, light up when sending data
RXD: RX indicator, light up when receiving data
